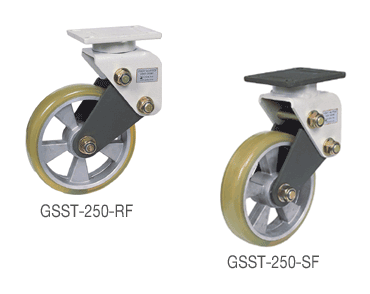

吸收振动型防震脚轮GSST250 |
|
![](images/pic4a.gif) |
![](images/outline4a.gif)
点击放大 |
设计说明(Specification) |
每个允许承载Load capacity/pce
|
Within 10 km/h |
1350 kg (2970 lbs) |
Within 20 km/h |
1000 kg (2200 lbs) |
四个允许承载
(Recommended load/4 pcs) |
4,000 kg (8,800 lbs)
|
净重(Net weight) |
F-type |
14.7 kg (32.4.0 lbs) |
|
|
使用温度(Temperature range) |
-10 ~ +90℃(+14 ~ +194℉) |
|

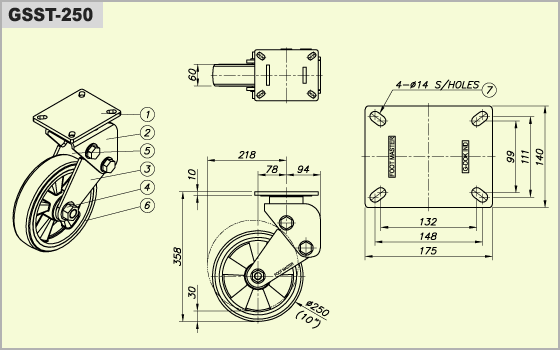

尺寸图材料说明 |
①底板(Top plate) |
Forged steel |
②支架(Frame) |
Aluminum diecasted |
③ 摆动臂(Leg) |
Aluminum diecasted |
④ 轴承(Bearing) |
Ball bearing #6250zz |
⑤ 吸振垫(Spring) |
特殊弹力胶(Special rubber) |
⑥ 轮子(Wheel) |
铝芯包聚氨脂(Polyurethane/Anti-static polyurethane with aluminum core ) |
⑦ 刹车踏板(Stopper) |
尼龙-6(Nylon-6) |
⑧ 固定螺栓(Mounting bolt) |
F-type |
4-M12x1.75P
|
⑨ 表面处理
(Surface treatment) |
粉喷及镀锌(Powder coated & Zinc galvanized ) |
|
■ 20km/h 以內,可以利用动力车牵引 (Towable within 20km/h by power car)
|
