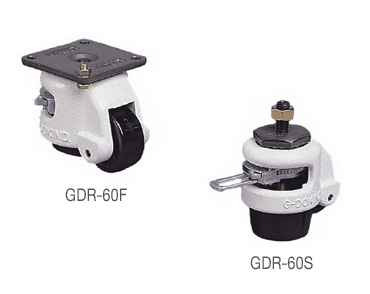

水平调节高度支撑脚轮foot master&carry master (leveling caster)
GDN-60S/GDN-60F
![](c2.gif) |
每个允许承载Load capacity/pce |
250 kg |
550 lbs |
四个允许承载 (Recommended load/4 pcs) |
500 kg |
1100 lbs |
净重(Net weight) |
S-type (丝杆型) |
0.7kg |
F-type(底板型) |
0.8kg |
使用温度(Temperature range) |
-10 ~ +90℃ |
+14 ~ +194℉ |
|
![](c1.gif)
|

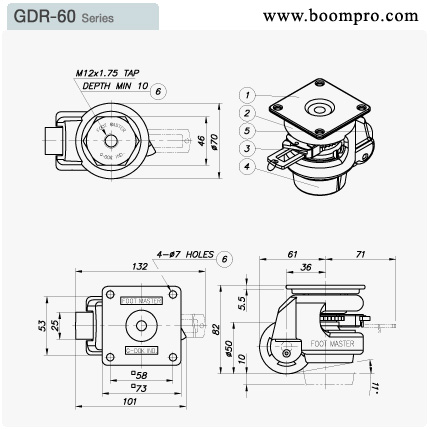

①底板(Top plate) |
F-type : Pressed steel / S-type : Forged steel |
②支架(Frame) |
Aluminum diecasted |
③ 调节轮(Handle) |
尼龙-6(Nylon-6) |
④ 支撑垫(Bearing) |
橡胶(聚氨脂/NBR(Polyurethane, Anti-static polyurethane available by order) |
⑤ 轮子(Spring) |
尼龙-6(Nylon-6) |
⑥ 固定螺栓(Mounting bolt) |
S-type(丝杆型) |
M12x1.75P |
F-type (底板型) |
4xΦ7孔 |
⑧ 表面处理 (Surface treatment) |
粉喷及镀锌(Powder coated & Zinc galvanized ) |
|
|
